Testing a Capacitor With a Voltmeter: Top Meters & How To

As an Amazon Associate we earn from qualifying purchases. Details

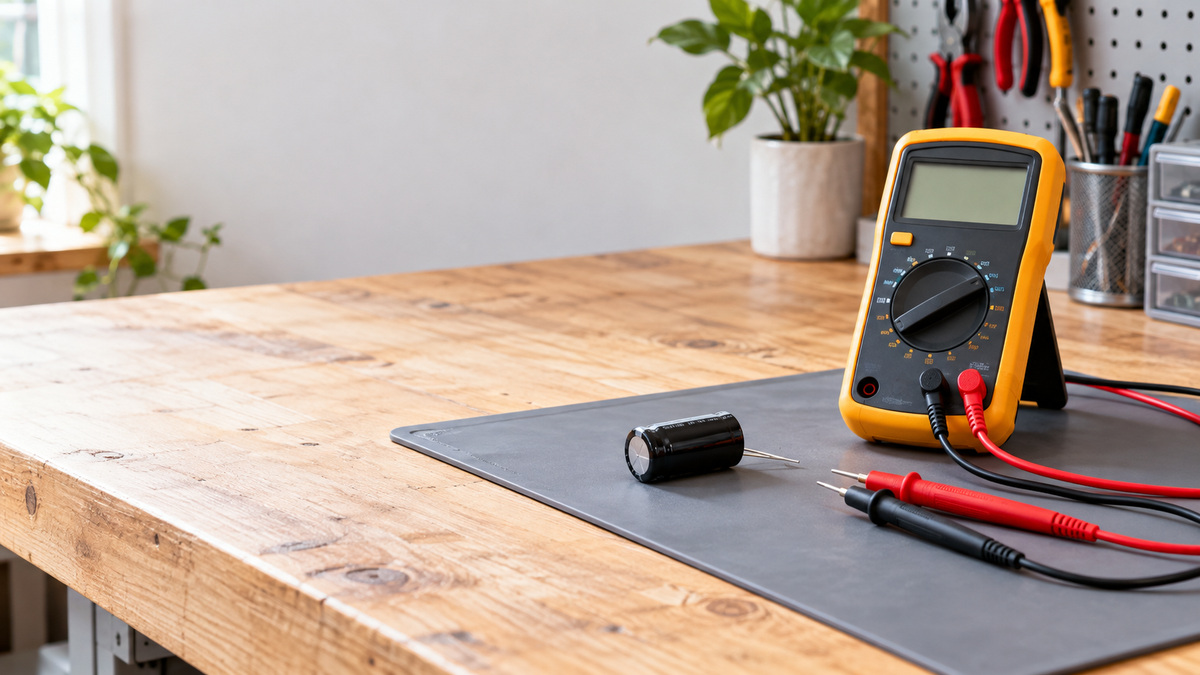

Testing a capacitor with a voltmeter means using the voltage function of a multimeter to check for stored charge and basic behavior. This article helps you decide which meter to buy for voltmeter capacitor testing around home electronics, HVAC parts, and automotive work, and how to stay safe while you do it.

Work on mains circuits can kill. The meter CAT rating must suit the circuit you touch, and panel or service work belongs to a licensed electrician. Follow the instrument manual and local electrical rules. A simple voltage check does not replace a dedicated Best Capacitor Tester or Best Capacitor Checker when you need a measured capacitance value.

Quick answer

For testing a capacitor with a voltmeter, choose a battery powered digital multimeter with an AC/DC voltage range to at least 600V, a clear DC voltage scale, and continuity for safe lead checks. If you want a measured capacitance value rather than only a charge and discharge indication, choose a model that lists a capacitance range, such as the ANENG listing with Range:0nF~2MF. For basic charge checks in cars, a 3V-48V automotive tester can show voltmeter V readings, but it cannot measure capacitance. Check the listing for CAT rating before you touch anything connected to household mains.

What matters for testing a capacitor with a voltmeter

A voltmeter shows voltage. It does not directly show capacitance unless the meter also has a capacitance mode. For this task you need to separate two jobs: checking for dangerous stored voltage, and checking capacitor behavior or value.

Voltage range and resolution matter first. The listings here show DC Voltage 200mV/2V/20V/200V/600V on one compact model, DC Voltage 0.8V~600V on a smart model, and measurement from 7V to 30V on a small panel meter. Match the range to your capacitor. Motor and HVAC capacitors can hold mains-level charge. Automotive capacitors and small electronics are lower voltage, but the stored charge can still bite.

Capacitance range matters if you want more than a rise and fall indication. Only one listing in this set states a capacitance range. The ANENG specs state Capacitance Range:0nF~2MF with Resolution:10pF~1uF. The other multimeter listings describe resistance, diode, continuity, current, temperature, or frequency, but do not state a capacitance range in the fields given. For those models, check the product listing to confirm whether a capacitance mode exists.

Safety rating matters before you touch leads to anything wired to a building. Use only a rating stated in the listing. One compact meter lists Environmental Conditions CAT II 600 V; CAT Ill 300 V. One smart meter states CAT II 600V, CE, and RoHS certified. One 600V model states Certified to UL 61010-1 and CSA C22.2 standards. If the listing does not state a CAT rating, do not call the meter safe for household mains.

Counts and display matter for reading small changes. This set includes 2000 Counts, 4000 counts, 4000-count LCD display, and 6000 Count models. Counts are a simplification for display resolution: higher counts can show smaller steps on the same range, but accuracy is set by the stated percent tolerance. A common rule of thumb is to use auto-ranging for unknown voltages, then switch to manual range only if you understand the trade-off.

Current and resistance modes matter for setup, not for the capacitor itself. Never measure current or resistance across a charged capacitor or a live circuit. Models here list Direct Current Maximum 10 A, Maximum Alternating Current 10 A, DC Current Range:2mA~10A, and one model with Note CAN’T MEASURE CURRENT. Choose current capability only if you need it for other work such as Best Testing Electrical Circuits with Multimeter or Best Load Testing Car Battery with Multimeter.

How to choose a meter for this task

Start with your use case. For disconnected electronics capacitors, a compact manual meter with DC voltage scales from 200mV to 600V can show charge and discharge. For general home DIY where you may also check outlets, look for at least CAT II 600 V stated in the listing plus overload protection. For automotive 12-volt systems, a dedicated automotive circuit tester with 3V-48V coverage and 0.1V resolution is easier to clip and read.

Then check the functions list line by line. Confirm DC voltage, AC voltage, resistance, continuity buzzer, and diode if you also troubleshoot boards. Confirm whether capacitance is listed. Do not assume a meter measures capacitance because the title mentions Capacitor. Titles can describe possible uses. Only the specs and bullets prove the mode.

Then check power, leads, and usability. Listings here include 2 x 1.5 V AAA Batteries, two AA batteries pre-installed, a built-in 200mA large-capacity battery with USB charging, a 9V battery included, and 96 inch spring wire on an automotive tester. Look for Data Hold, backlight, low battery indication, auto shutdown, and a stand or holster if you work alone.

If you compare a Best Digital Voltmeter panel gauge with a handheld multimeter, treat them as different tools. A panel gauge that measures DC Voltage precisely from 7V to 30V is for monitoring a system voltage. It is not a handheld troubleshooting meter with probes, ranges, and safety ratings. A voltmeter 2 in 1 USB charger with a voltage display is also a monitor and charger, not a capacitor test instrument.

Learn the related checks before you start: Best Test Capacitor with Digital Multimeter, Best Check Ac Capacitor with Multimeter, Best Measure Capacitor Esr, and Best Capacitor Meter.

Picks for voltmeter capacitor testing

Westinghouse 600V auto-ranging meter for home and jobsite voltage checks

This is a 600V Large Screen auto-ranging digital multimeter for AC/DC voltage, 10A current, continuity, frequency, temperature, diode, ohm, resistance, and capacitor uses stated in the title. The listing states Large 4000-count LCD display, True RMS Accuracy, and Relative Mode for differential measurements. It states 6.5 Feet (2 Meter) Drop Resistance and Item Weight 7.2 ounces with Item Dimensions 5.9 x 2.8 x 2 inches.

It fits a homeowner or DIYer who wants one best voltmeter for outlet checks, appliance checks, and basic stored-voltage checks on disconnected capacitors. The 600 Volt AC/DC Voltage Measurement line and 10 Amp AC/DC Current Measurement line make the intended scope clear. Temperature Measurement in °C and °F helps with HVAC and appliance context.

The honest limit is safety paperwork. The listing states Certified to UL 61010-1 and CSA C22.2 standards, but the fields given do not state a CAT II, CAT III, or CAT IV code in plain text. Do not assume a category. Check the product listing and manual for the CAT rating and voltage rating before mains use. Skip it if you need a printed CAT rating in the listing for household mains work.

AstroAI compact manual meter for first-time DC voltage checks

This is a compact manual-range digital multimeter with DC AC voltmeter functions for voltage, DC current, resistance, continuity, and diode. The specs state Range Selection Manual, Digital Display 2000 Counts, Sample Speed 3 Times Per Second, and Power 2 x 1.5 V AAA Batteries. Item Dimensions are listed as 1.77 x 5.47 x 42.52 inches, which looks inconsistent with a compact handheld meter, so rely on the manual and listing photos for size rather than that line.

It fits a student or homeowner learning Best Voltmeter Measure Voltage on batteries, fuses, and disconnected low-voltage capacitors. The DC Voltage line states 200mV/2V/20V/200V/600V, and the AC Voltage line states 200V/600V. Fuse Protection is stated as mA: F250 mA/250 V Fuse; 10 A: F10 A/250 V Fuse.

The honest limit is manual ranging and coarse low-voltage AC coverage. You must set the rotary switch correctly, and the listing warns that plugs not fully inserted or a switch in the wrong position can prevent results. The listing does not state a capacitance range in the fields given, so treat it as a voltage, continuity, and resistance helper rather than a measured-value capacitor testing machine. Skip it if you want auto-ranging or a stated capacitance mode.

LJPXHHU orange handheld meter for car and home troubleshooting

This modern-style handheld meter measures AC/DC voltage, DC current, resistance, continuity test, diode, and batteries per its bullets. It has a 2.7 inch large backlit LCD display, Data Hold, Low Battery Indication, and Overload Protection on all ranges per the bullets. Item Weight is 166 g and Item Dimensions are 5.51 x 2.56 x 1.18 inches.

It fits a beginner who wants a readable screen in dim areas for battery checks, wire continuity, and basic stored-charge checks. The removable thick rubber cover and fold-out stand help for bench use. The included 9V battery and test leads reduce extra purchases, and the listing notes a 2 year quality guarantee against faulty materials and workmanship.

The honest limit is missing ratings detail. The specs state Specification Met Safety Standards Met without naming the standard, voltage, or CAT code. The listing does not state a CAT rating, counts, accuracy tolerances, or a capacitance range in the fields given. Do not use it on household mains based on this information. Skip it if you need documented CAT protection or a capacitance readout.

ANENG meter with stated capacitance range for value checks

This is the only pick in this set whose specs state a capacitance mode. The specs state Capacitance Range:0nF~2MF with Resolution:10pF~1uF and Accuracy:±(5%+10). It also states DC Voltage Range:200mV~600V, AC Voltage Range:200mV~600V, DC Current Range:2mA~10A, AC Current Range: 2mA~10A, Resistance Range0Ω~200MΩ, Max Count 2000 Count, and Weight 155g.

It fits a hobbyist who wants voltmeter capacitor testing plus a direct capacitance reading for small electronics. The listing also states Diode, On-OFF Detection, Data Retention, Live Detection, NCV Sensing, Reverse Display, Auto Shut-down, and Battery Test 12V/9V/7.5V Battery. Two AA batteries are pre-installed per the bullets.

The honest limit is wide tolerance on capacitance and resistance. Capacitance Accuracy ±(5%+10) and Resistance Accuracy ±(4.0%+10) are coarse compared with a dedicated capacitance meter. The listing does not state a CAT rating in the fields given. Skip it if you need mains-rated protection stated in writing or laboratory-grade capacitance accuracy.

TESMEN smart meter for simple voltage and continuity work

This is a Smart Auto Mode meter that switches between AC/DC voltage, resistance, and continuity without selecting a mode or range. The specs state Display 4000 counts, Measurable Voltage 0.8 ~ 600 v, AC Voltage 0.8V~600V, DC Voltage 0.8V~600V, Sampling approx. 3 times / second, and Frequency Response 40 Hz ~ 1 kHz True RMS. Included Components are 1TM-510 Multimeter, 2Test Leads, 2AAA Batteries, 1Storage Bag, and 1*User Manual.

It fits a car owner or homeowner who wants fast checks without learning ranges. The Non-Contact Voltage test with visual and audible alarm helps find live AC wire before touching probes. The listing states CAT II 600V, CE, and RoHS certified, with overload protection and an outer silicone cover.

The honest limit is current. The specs include Note CAN’T MEASURE CURRENT, and continuity is listed as < Approx. 50Ω. In auto mode, if detected battery voltage is below 0.8V, the device will automatically measure resistance, which can confuse a beginner checking a nearly discharged capacitor. The listing does not state a capacitance range. Skip it if you need current measurement or a capacitance value.

WINAMOO automotive tester for 12-volt system voltage checks

This is a corded electric automotive test light with LED digital voltage display for 3V-48V systems. The bullets state 0.1V resolution, sharp stainless steel probe, 96 inch long spring wire, large alligator clip, and ergonomic handle. Item Dimensions are 11.1 x 4.2 x 1.4 inches and Item Weight is 200 g. Specification Met is listed as CE, UL.

It fits a car owner checking battery voltage, charging voltage, lights, and trailer wiring. The bidirectional light emitting diode indication and clear digital display make polarity and basic load indication faster than swapping multimeter ranges. Use it for Best Test Light with Voltmeter style tasks.

The honest limit is scope. It is a voltmeter for automotive circuits, not a capacitance meter and not a household mains meter. The fields given do not state a CAT rating, counts, or capacitance function. It cannot replace a multimeter for resistance, diode, or capacitance checks. Skip it if you want capacitor value measurement or any mains testing. Disconnect and handle batteries safely, and do not use it on airbag or high-voltage hybrid and EV systems.

Comparison table built only from listing data

Meter	Display / counts	Voltage from listing	Other modes from listing	Safety stated	Weight / size
Westinghouse 600V	Large 4000-count LCD display	600 Volt AC/DC Voltage Measurement	10 Amp AC/DC Current Measurement, continuity, frequency, temperature, diode, ohm, resistance	Certified to UL 61010-1 and CSA C22.2 standards	7.2 ounces, 5.9 x 2.8 x 2 inches
AstroAI AM33D	2000 Counts, backlight LCD	DC Voltage 200mV/2V/20V/200V/600V; AC Voltage 200V/600V	DC Current 200µA/200mA/10A, resistance, continuity buzzer, diode	Environmental Conditions CAT II 600 V; CAT Ill 300 V; fuses F250 mA/250 V and F10 A/250 V	Item Weight 0.15 kg
LJPXHHU XL830L	2.7 inch backlit LCD, Data Hold	AC/DC voltage per bullets, ranges not stated	DC current, resistance, continuity, diode, batteries	Specification Met Safety Standards Met, Overload Protection on all ranges	166 g, 5.51 x 2.56 x 1.18 inches
ANENG SZ301	Max Count 2000 Count, LED Screen	DC Voltage Range:200mV~600V; AC Voltage Range:200mV~600V	Capacitance Range:0nF~2MF, current 2mA~10A, resistance 0Ω~200MΩ, NCV	Anti-burn double fuses, overload protection; no CAT stated	Weight 155g
TESMEN TM-510	Display 4000 counts	Measurable Voltage 0.8 ~ 600 v; AC 0.8V~600V; DC 0.8V~600V	Resistance, continuity < Approx. 50Ω; Note CAN’T MEASURE CURRENT	CAT II 600V, CE, RoHS; overload protection	Item Weight 0.1 kg
WINAMOO auto tester	LED display, 0.1V resolution	3V-48V systems	Polarity indication, circuit tester functions	Specification Met CE, UL; no CAT stated	200 g, 11.1 x 4.2 x 1.4 inches

Use the table to avoid comparing different kinds of numbers. Listed size is not usable probe reach. Headline voltage is not protection category. For mains work, the CAT line matters more than counts.

Safe workflow overview

Do not open live panels. If the capacitor is inside a furnace, air handler, washer, microwave, or breaker panel, stop and call a licensed electrician or qualified service tech. Microwave oven capacitors and large motor capacitors can hold a dangerous charge after power is off.

For a disconnected low-voltage electronics capacitor on a bench, experienced hobby guides follow the same order: disconnect power, isolate the capacitor from the circuit if possible, verify zero energy with a properly rated voltmeter, discharge through a rated resistor if trained to do so, then measure. Wear eye protection. Keep one hand clear where practical. Never short a capacitor with a screwdriver to discharge it. That can damage the part and throw hot metal.

A voltmeter-only check is limited. With leads on DC volts across a disconnected capacitor, you may see a stored voltage that falls as the meter input loads it, or a small rise when charging from the meter on resistance mode on some analog-style circuits. That behavior suggests the part can hold charge, but it does not prove value, leakage, or equivalent series resistance. For a pass or fail decision on a motor-run capacitor, use a capacitance mode or a dedicated tester, and compare against the microfarad rating printed on the part and its tolerance.

For background on safe categories, remember that measurement category is a method of classification by the International Electrotechnical Commission of live circuits used in measurement and testing. The categories take into account the total continuous energy available at the given point and impulse voltages. Measurement category II is for circuits directly connected to the low-voltage installation, while category IV is for measurements at the source of the high-voltage installation. Required impulse withstand varies from 500 V to 12,000 V across categories and voltages.

If you also need mains-adjacent skills, study Best Testing Ac Voltage with a Multimeter, Best Testing Voltage on Outlet, Best Test Electrical Outlet with Multimeter, and Best Test Circuit Breaker with Multimeter. For general technique, see Best Use a Voltmeter and Best Digital Multimeter How to Use Testing Voltage.

Worked example with a hypothetical capacitor check

This example shows why counts change what you can see. It does not tell you to touch a specific capacitor. Treat the numbers below as our planning estimate for learning only.

Assume a disconnected capacitor holds 12.0 volts DC at the start. Assume you watch it with two meters: Meter A has 4000 counts on a 600V scale, Meter B has 2000 counts on a 600V scale. Assume both are set to DC volts and the capacitor is already safely isolated on a bench.

Step 1: estimate the smallest display step. Divide range by counts. For Meter A, 600 volts divided by 4000 counts equals 0.15 volts per count. For Meter B, 600 volts divided by 2000 counts equals 0.30 volts per count. Check: 0.15 times 4000 equals 600, and 0.30 times 2000 equals 600, so both divisions re-verify.

Step 2: estimate how many steps a 2.0 volt fall covers. For Meter A, 2.0 volts divided by 0.15 volts per step equals 13.33 steps, so about 13 steps. For Meter B, 2.0 volts divided by 0.30 volts per step equals 6.67 steps, so about 7 steps. Check: 13 times 0.15 equals 1.95 volts, and 7 times 0.30 equals 2.10 volts, both close to 2.0 volts.

Step 3: use the result to decide. If you need to see a slow 0.2 volt change, Meter A can show it as one or two steps, while Meter B may not move. That difference matters when you watch a stored charge bleed down. It does not make either meter accurate for capacitance value. For value, use the stated capacitance mode and tolerance, or a dedicated instrument.

Five common mistakes

First, touching a capacitor that is still connected to power. Disconnect power, confirm isolation, and verify with a rated meter. Large capacitors can recharge to a surprising level through dielectric absorption after a first discharge, so verify again before handling.

Second, using voltage mode to declare a capacitor good. A normal-looking stored voltage does not prove capacitance, leakage, or series resistance. If the motor hums or the board still fails, measure capacitance if your meter lists that mode, or use a proper tester.

Third, using the wrong meter for mains-level parts. A 7V to 30V panel gauge, a USB charger voltage display, or an automotive 3V-48V tester is not rated for household mains in the data given. Check for a CAT rating that suits the circuit. When in doubt, stop and ask a professional.

Fourth, measuring resistance, continuity, current, or capacitance on a live or charged part. Those modes are for de-energized components. Measuring current across a voltage source can blow fuses or injure you. The AstroAI listing uses F250 mA/250 V and F10 A/250 V fuses, but fuses do not make a wrong connection safe.

Fifth, trusting an ambiguous listing line. One listing in this set gives item dimensions that do not match a compact meter. Another lists a title mention of Capacitor without a capacitance range in the specs given. When title and specs disagree or a rating is absent, believe neither number for safety and check the product listing and manual.

Care, storage, and when to stop

Store meters dry between 0 and 40 degrees where stated, keep leads straight and undamaged, and replace weak batteries promptly. Low battery indication appears on several listings, but weak batteries can still cause confusing readings. Inspect probes for cracked insulation before every session.

Keep test leads fully seated. The AstroAI bullets specifically warn that plugs not fully inserted or a switch in the wrong position can prevent results. Use Data Hold only after the reading is stable. Use auto shutdown to save batteries, but do not rely on it to de-energize anything.

Stop and get help if you see bulged or leaking capacitors, burned marks, buzzing panels, or repeated blown fuses. Those signs point to faults beyond a voltmeter check. Panel or service work belongs to a licensed electrician. For related safety reading, see Best Stray Voltage Testing, Best Ground Testing Meter, and Voltmeter Continuity Test.

FAQ

Can a voltmeter measure capacitance directly?

No. A voltmeter mode measures voltage only. Some multimeters add a separate capacitance mode that reports microfarads or nanofarads. In this set, only the ANENG listing states Capacitance Range:0nF~2MF. For other models here, check the product listing to confirm.

What is the safest first step before testing a capacitor with a voltmeter?

Disconnect power and isolate the part if you are qualified to do so, then verify stored voltage with a properly rated meter. Work on mains circuits can kill. If the capacitor is inside mains equipment or a panel, call a licensed electrician instead.

Why does my meter show voltage that slowly falls?

The meter input can drain a small stored charge, so the reading drifts down. That shows the capacitor held charge. It does not prove the printed capacitance value or that the part works under load.

Do I need true RMS for capacitor work?

True RMS matters for AC voltage accuracy on distorted waveforms, such as variable-speed drives. The Westinghouse listing states True RMS Accuracy and the TESMEN listing states Frequency Response 40 Hz ~ 1 kHz True RMS. For simple DC stored-charge checks, DC range and safety rating matter more.

What CAT rating do I need for home outlet or HVAC capacitors?

Use only a CAT rating stated in the listing that suits the circuit. Category II covers circuits directly connected to the low-voltage installation in the source used here. If the listing does not state a CAT rating, do not assume mains safety. Panel and service conductors need higher categories and a professional.

Can I use an automotive tester or panel voltmeter for capacitors?

You can use an automotive tester to check system voltage around a 12-volt battery, but the WINAMOO, Stetsom-style panel gauges, and USB charger displays in this data do not state capacitance measurement. They also do not state a mains CAT rating. Use a handheld multimeter with a stated capacitance mode for value checks.

Why do counts matter?

Counts set display steps, not accuracy. On a 600V scale, 4000 counts gives smaller steps than 2000 counts. Accuracy is still set by the tolerance lines such as DC Voltage 200mV/2V/20V/200V/600V ±(0.5%+3) on one listing. Check both lines before comparing meters.

When should I buy a dedicated capacitor tester instead?

Buy a dedicated tester when you need reliable microfarad readings, leakage checks, or equivalent series resistance for repair decisions. A voltmeter-only indication cannot replace those measurements. See dedicated guides for tester picks and follow the maker manual.

Bottom line

If you only need to check for stored DC voltage and basic behavior, choose the Westinghouse 600V meter for broad voltage coverage or the TESMEN TM-510 with stated CAT II 600V for simple auto-mode checks. If you need a numeric capacitance value from this set, choose the ANENG SZ301 because it is the only listing that states a capacitance range, while remembering its coarse tolerance. If you work on cars, add the WINAMOO 3V-48V tester for fast system voltage checks, but do not use it for mains or capacitance value. When the listing does not state a CAT rating, do not touch household mains.

Sources

• Measurement category: CAT definitions, CAT II vs CAT IV use, and impulse withstand range used in safety section
