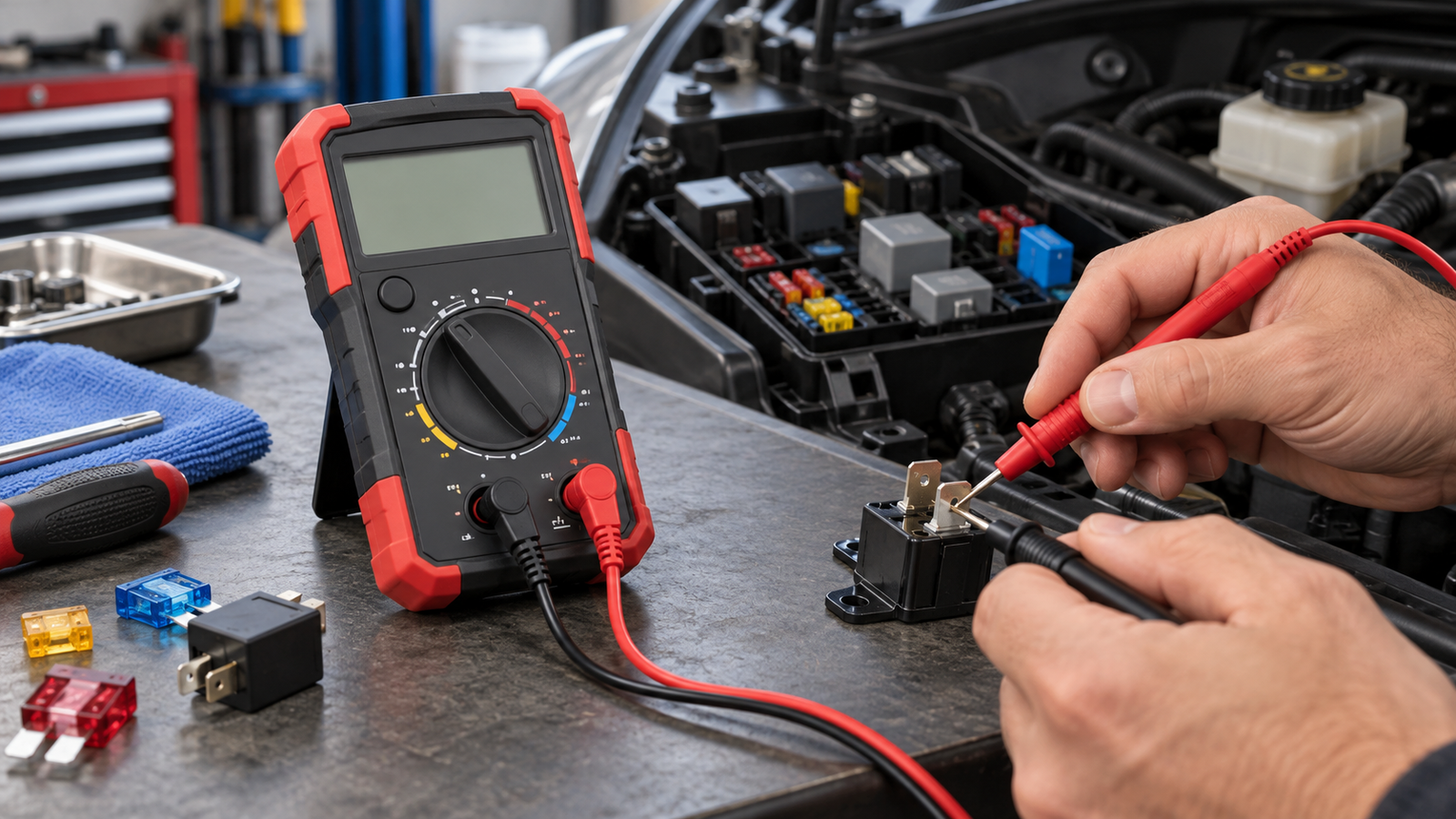

Innova 3300 Explained: Ranges, Safe Use and What to Check

As an Amazon Associate we earn from qualifying purchases.

The Innova 3300 is a handheld digital multimeter with a 3-½ digit LCD that reads up to 2000, manual range selection, and a 9-volt battery. Its owner’s manual (Innova MRP #93-0187 Rev. A) gives the measurement ranges, a 0.315 A / 250 V fuse, and a maximum input of 500 V AC or DC. The manual classes the meter as overvoltage Category 2 and does not state a CAT III or CAT IV rating, so it is not the right tool for work on mains panels or service equipment.

Quick answer

The manual lists DC volts, AC volts, resistance (ohms), a diode test, DC current in mA and 10 A ranges, and a battery test.
Maximum voltage between the COM and V jacks is 500 V AC or DC. The manual says the COM terminal should not exceed 300 V AC or DC to ground.
The manual says overvoltage Category 2, pollution degree 2, indoor use only.
Replace the fuse only with a 0.315 A / 250 V, 5 x 20 mm type. The 10 A input has no fuse at all.

What the Innova 3300 measures

A digital multimeter turns an electrical quantity into a number on a display. The 3300 uses a 3-½ digit display, which means the first digit can show only 0 or 1 and the largest reading is 2000 on the scale the manual describes. The manual lists the following functions and ranges.

DC volts. The manual lists ranges of 200 mV, 2 V, 20 V, 200 V and 500 V. The resolution is 0.1 mV on the 200 mV range and 1 V on the 500 V range. Accuracy is given as ±0.8% of reading plus 5 digits. The input impedance is 10 MΩ on all ranges, and the overload protection is 500 V DC or AC.

AC volts. The AC voltage section gives ranges up to 500 V and states a frequency band of 40 Hz to 400 Hz. Read the range table in the manual before you measure a signal outside that band, because the copy we read does not give an accuracy figure for frequencies outside it.

Resistance (ohms). The resistance ranges are 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ and 20 MΩ. The manual gives accuracy per range; the lower rows read ±1% of reading plus 5 digits, and the 20 MΩ row reads ±2% of reading. Overload protection is 250 V DC or AC RMS.

Diode test. The diode function sends a small test voltage through a junction and displays the forward voltage drop. The manual’s procedure is to measure once, reverse the leads, and measure again. One reading should show a voltage drop and the other should show an overrange (1) condition.

DC current. The current section has a mA input for 0 to 200 mA and a 10 A input for 200 mA to 10 A DC. The 10 A range is not fused. The manual says not to measure circuits above 10 A, not to take more than 15 seconds per reading, and to wait at least 15 minutes between 15-second tests.

Battery test. The battery test uses a separate BAT. jack. The manual’s table includes a 1.5 V battery range with 10 mV resolution. Its procedure says to determine the battery’s voltage rating and set the dial to the matching battery test range before you connect the leads.

How to use the meter safely

Start with the manual, not the dial. The manual repeats one rule in several places: use only the leads supplied with the meter, and do not use third-party leads or probes. Inspect the meter, leads and probes before every use. If the case, the leads or the insulation are damaged, do not use the meter until it has been repaired.

Before any voltage measurement, set the dial to a range higher than the expected voltage. Remember the manual’s warning that voltages above 30 V AC RMS, 42 V peak or 60 V DC are a shock hazard. The manual also says to treat every circuit as energized until you have proven otherwise, and to avoid grounding yourself while you measure. Its advice is to isolate yourself from ground, for example by standing on dry rubber mats and wearing dry clothing.

Resistance and diode measurements must be made only on de-energized circuits. The manual is direct about this: applying voltage to the terminals while the meter is on a resistance range can cause shock, damage the meter and damage the equipment under test. Disconnect power, and where possible remove the component from the circuit, before you measure resistance or test a diode.

Step by step: a basic voltage check

Plug the black lead into the COM jack and the red lead into the V jack.
Set the dial to the voltage type you need, AC or DC, and choose a range above the expected value.
Place the red lead on the positive side of the item under test and the black lead on the negative side.
Keep hands clear of any energized conductor and read the display.

This sequence is adapted from the manual’s voltage testing procedure. It does not replace the manual, and it does not cover work inside a panel. Work on panels, service entrances and other mains equipment belongs to a licensed electrician.

Replacing the battery and fuse

The manual says the meter runs on one 9-volt alkaline battery. Replace the battery as soon as the low battery indicator appears, because the manual warns that low battery can lead to false readings and possible shock. To replace the battery or fuse, turn the meter off, remove the test leads, remove the two screws on the back, and separate the case. Only the rear panel should be removed. The manual says not to open the circuit board or front panel, which are not serviceable.

The fuse is a 0.315 A / 250 V, 5 x 20 mm, UL-listed GMA type. The manual names a Radio Shack part number as the reference fuse, and warns that an incorrect fuse can cause serious injury or damage. Keep a spare of the exact type. Do not substitute a fuse with a higher current rating.

Specifications the manual states

The manual is the only source in this article for specifications. The points that matter most before you buy are these:

Display: 3-½ digit LCD, maximum reading 2000, over-range indicator, low battery indicator.
Range control: manual range control. The manual does not describe automatic ranging.
Safety standard: CE EMC/LVD, built to IEC 1010 standards, pollution degree 2, overvoltage category 2, double or reinforced insulation.
Environment: 0 °C to 40 °C operating temperature, below 80% relative humidity without condensation, altitude up to 2000 m.
Power and fuse: one 9-volt (6F22) battery, 0.315 A / 250 V fuse.
Size and weight: 139 mm high, 89 mm wide, 32 mm deep, about 170 g with the battery.
Warranty: one year from original purchase, as written in the manual.

How we chose

This article is an explainer about one model, not a ranking. All three sources were published by Innova. The owner’s manual is the only one that states the meter’s ranges and limits. The two help-center pages were opened to confirm where Innova publishes manuals and whether a 3300 manual is listed there. The 3300 is not listed on the help-center page we opened, so the manual copy in the first source is the reference used here. Its copyright line is dated 2013. We did not compare it with any later revision.

What we could not verify

The manual does not state a CAT rating. It states overvoltage category 2. The article does not assign any higher category.
The manual does not state true RMS. It does not describe the AC measurement method, so the article does not say whether the meter is true RMS.
The manual does not describe a continuity beeper on the dial. We did not confirm one.
The manual’s AC voltage accuracy and any figures above 400 Hz were not confirmed in the copy we read.
The opened help-center pages were general. None of them gives a 3300-specific specification.

Buying checklist

Check whether the meter’s rating matches the highest voltage you will measure. For mains work, the manual’s category is not enough, so look for a meter whose manual states CAT III or CAT IV.
Confirm that you need DC current up to 10 A. The 10 A range is unfused and limited to 15-second readings, which rules out long current tests.
Check that the battery type and the 0.315 A fuse are easy to get. Keep spares.
Read the warranty terms in the manual. It covers one year from purchase and excludes damage from improper use.
If you need automatic ranging, check the manual before you buy. The copy we read describes manual range control.

Mistakes to avoid

Measuring resistance on a live circuit. The manual says this can cause shock and damage. Power off first.
Using the 10 A range for long tests. The manual limits readings to 15 seconds, with a 15-minute wait between them.
Replacing the fuse with a different type. The manual names one 0.315 A / 250 V, 5 x 20 mm type.
Ignoring the low battery indicator. The manual warns that low battery can produce false readings.
Using a meter rated only for overvoltage category 2 on mains panels. The manual does not support that use.

Related guides

If you are new to the dial, start with how to check a fuse with a multimeter. For a broader look at meters with a clamp, read the clamp meter guide. For resistance checks on components, see how to test a resistor with a digital multimeter.

FAQ

Can the Innova 3300 measure mains voltage?

The manual lists voltage ranges up to 500 V AC or DC and gives an overvoltage category of 2. It does not state a CAT III or CAT IV rating. Do not use it on mains panels, service equipment or any circuit where the category matters. Those jobs need a meter whose manual states CAT III or CAT IV, and panel work belongs to a licensed electrician.

Does the Innova 3300 have a continuity beeper?

The manual’s listed features do not mention a continuity beeper. Check the dial and the manual before you rely on an audible continuity check.

What battery does the Innova 3300 use?

The manual says one 9-volt alkaline battery, type 6F22. Replace it when the low battery indicator shows.

What fuse does the meter use?

A 0.315 A / 250 V, 5 x 20 mm, UL-listed GMA type. The manual warns that an incorrect fuse can cause injury or damage.

Is the Innova 3300 an automatic ranging meter?

The manual describes manual range control. It does not describe automatic ranging, so choose the range yourself before each reading.

Where can I get the manual?

Innova’s “Can’t Find A Manual” article says its manuals are offered in English, Spanish and French, and that recent purchases can download the manual from the help center. The 3300 was not listed on the help-center page we opened, so the manual used here is the maker copy linked in the first source.

Bottom line

The Innova 3300 is a basic handheld meter with a 2000-count display, manual ranging, a 500 V maximum input and an unfused 10 A current range. Use it for low-voltage checks within the manual’s limits, and do not rely on it where a CAT III or CAT IV rating is required.
