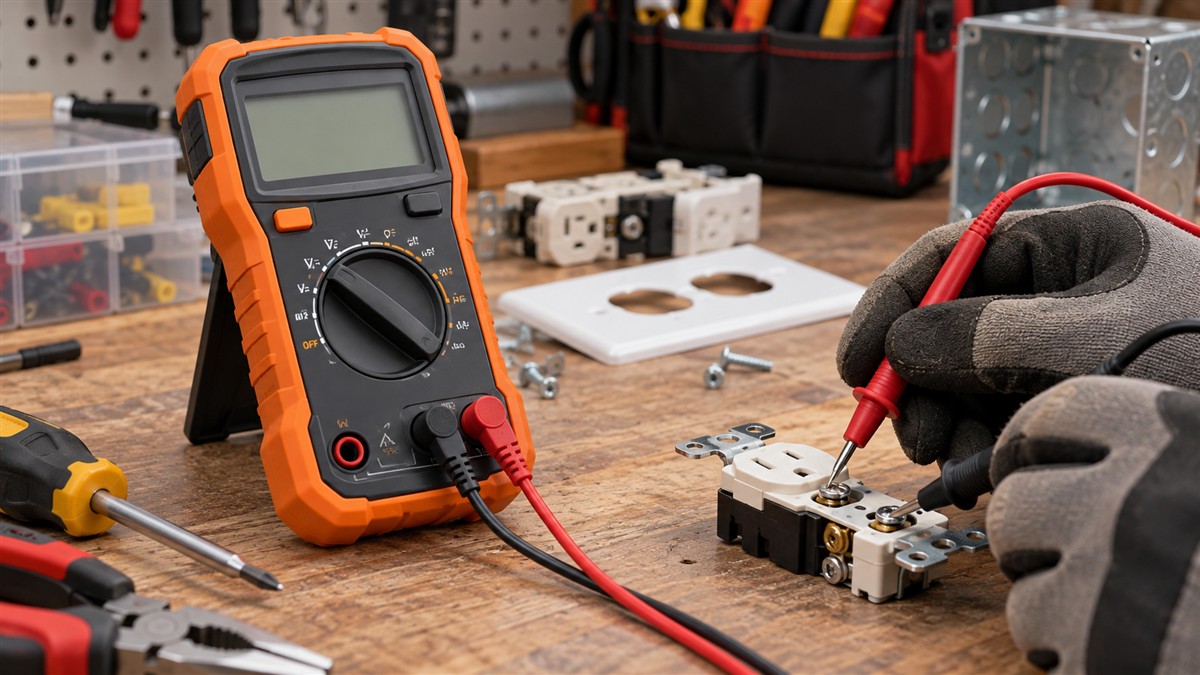

Klein MM325 Multimeter: Uses, Limits and Stated Specs
As an Amazon Associate we earn from qualifying purchases.
The Klein Tools MM325 is a manual-ranging digital multimeter with a 2000-count display. Klein describes it for AC and DC voltage, DC current, resistance, diode and continuity checks, and battery testing. It is rated CAT III 600 V, Class 2, double insulation. Unlike the auto-ranging MM420, you choose the measurement range yourself, and the MM325 does not list AC current, capacitance, temperature or True-RMS in Klein’s selection guide.
Quick answer
- Best fit: basic voltage, continuity, resistance and DC current checks, plus battery checks, on circuits rated at or below 600 V.
- Published rating: CAT III 600 V, Class 2, double insulation (manual, product page and selection guide).
- Display: 2000-count LCD (manual and product page).
- Not listed in the selection guide: AC current, capacitance, temperature, and auto-ranging.
- Limits in the manual: do not measure more than 600 V or 200 mA on the milliamp inputs, and do not measure more than 10 A on the 10 A jack.
What the MM325 measures
The manual describes the MM325 as a manual-ranging multimeter that measures AC and DC voltage, DC current and resistance. It can also check batteries, diodes and continuity. The manual lists DC and AC voltage up to 600 V, with a 2000-count LCD. The ranges are set with the rotary switch, not chosen by the meter.
The DC current functions are split across two inputs. The manual gives one procedure for DC current from 200 mA to 10 A, which uses the 10 A jack, and a second for DC current below 200 mA, which uses the V jack and the milliamp setting. The current functions are the place where most wrong connections happen, so the manual’s instructions should be read before any current measurement.
The battery test and diode test are part of the function set, and the manual says the meter can test batteries, diodes and continuity. The manual’s continuity section describes an audible signal for low resistance, and it says that continuity and resistance must not be measured on a live circuit. Those functions are useful for household and workshop jobs such as checking a fuse, a switch or a battery pack.
Lead Alert is the meter’s lead-placement feature. The manual names Lead Alert LEDs and a Lead Alert protection feature that is switched on by default. Treat the feature as a helpful indicator, not a substitute for checking the function and the jack yourself before every measurement.
Safety rating and what it means
The MM325’s published safety rating is CAT III 600 V with Class 2, double insulation. The manual gives the rating as CAT III 600 V, Class 2, double insulation, and the selection guide repeats it. The manual also says that the leads must be rated CAT III or CAT IV, and that the leads must meet the EN 61010-031 standard, rated CAT III 600 V, 10 A or better. A meter is only as safe as its leads, so check the lead rating before you use the meter, especially if the leads came from another source.
The rating means the meter is designed for the work it lists, and no more. CAT III 600 V does not cover work at the origin of an installation, and the meter is not a substitute for a licensed electrician on service or panel work. The manual states the meter is for indoor use and says not to expose it to moisture, rain or snow. The product page gives a drop protection figure of 2 m.
Safe use before you start
Electrical measurement can cause shock and burns. Before you measure, confirm the function, the input jack and the expected voltage. The manual says not to use the meter during electrical storms or in wet weather, and not to use it if the meter or its leads appear damaged. It also says not to open the meter to replace batteries while the probes are connected to a circuit, so disconnect the leads first.
The manual’s limits are the most important numbers in this guide. Do not attempt to measure more than 600 V or 200 mA on the milliamp settings, and do not attempt to measure more than 10 A on the 10 A jack. Do not attempt to measure resistance on a live circuit. Do not attempt to measure continuity on a live circuit. A meter that is used past its limits can fail in a way that puts the user at risk, so respect the limits even when a reading looks harmless.
Current measurements need one more check. Connect the leads to the correct jack before you turn the rotary switch, and remove the leads before you change the function. If the display shows an overload, stop, check the function and jack, and do not force a higher current through the meter. Checking the display and the switch before every measurement is a sensible habit.
Step-by-step: measuring DC voltage
- Confirm the expected voltage is at or below 600 V DC and that the circuit’s category suits CAT III 600 V.
- Plug the black lead into COM and the red lead into the V jack.
- Turn the rotary switch to the DC voltage range that covers the expected value. Start at a higher range if you are unsure.
- Touch the red lead to the positive side of the circuit and the black lead to the negative side.
- Read the display, then remove the leads before you change the function or range.
For battery checks, use the DC voltage range and compare the reading with the battery maker’s stated voltage. The battery test is a separate position on the switch. It does not replace a load test, so do not read it as proof of a battery’s capacity.
Specifications Klein states
| Item | What the sources state |
|---|---|
| Type | Manual-ranging digital multimeter (manual, product page and selection guide) |
| Display | 2000-count LCD (manual and product page) |
| Voltage | 600 V AC and DC (selection guide) |
| DC current | 10 A (selection guide and manual) |
| AC current | Not listed (selection guide) |
| Resistance | 2 MΩ (manual and selection guide) |
| Capacitance and temperature | Not listed (selection guide) |
| True RMS | Not listed (selection guide) |
| Safety rating | CAT III 600 V, Class 2, double insulation (manual and selection guide) |
| Batteries | Two AAA, included (product page) |
| Drop protection | 2 m (manual and product page) |
| Operating altitude | Up to 2000 m (manual) |
Checks before you buy
- Check the function list. Klein’s selection guide does not list AC current, capacitance or temperature for the MM325. If you need any of those, the MM420 is listed with them.
- Check whether you need auto-ranging. The MM325 is manual-ranging. Some users find that a helpful feature, while others prefer the auto-ranging function of the MM420.
- Check the lead rating. The manual requires CAT III or CAT IV leads. If you buy replacement leads, confirm they carry that rating.
- Plan for fuses. The manual describes the fuse compartment, but the sources opened for this guide do not give a fuse rating for every current input, so check the printed rating on the fuse before replacing it.
- Know the environment. The manual says the meter is for indoor use only.
Mistakes to avoid
- Measuring current with the leads in the voltage jack, or voltage with the leads in the current jack.
- Choosing a range that is too low, which causes an overload reading and can stress the meter.
- Measuring resistance or continuity on a live circuit, which the manual does not allow.
- Using the meter in wet weather or with damaged leads, both of which the manual warns against.
- Assuming Lead Alert replaces a check of the function and jack before each measurement.
How we chose
This guide explains one model and does not rank the MM325 against other meters. The criteria were that each figure had to come from Klein’s own product page, Klein’s MM325 manual or Klein’s 2026 selection guide, and that each figure had to be checked against text from one of those sources. Where the selection guide and the manual describe the same feature differently, both statements are noted.
What we could not verify
- The accuracy tables for each range. The manual has them, but this guide does not reproduce every value.
- The fuse rating printed on each current fuse, since the sources opened for this guide do not state it in full.
- Whether a given unit will hold its calibration over time, because no source opened for this guide covers calibration intervals.
- The contents of the lead kit in each package.
Frequently asked questions
Is the Klein MM325 rated for household mains?
The published rating is CAT III 600 V. That covers measurements inside a building’s fixed installation, subject to the manual’s limits. It is not a rating for work at the origin of an installation, and panel or service work should be left to a licensed electrician.
Does the MM325 measure AC current?
Not according to Klein’s selection guide, which lists AC current as a dash for this model. Use the MM420 or another meter if you need AC current.
Is the MM325 auto-ranging?
No. The manual describes a manual-ranging meter, and the selection guide does not list auto-ranging for it. You set the range with the rotary switch.
What batteries does it use?
Two AAA batteries, which Klein’s product page says are included. Disconnect the leads before opening the battery compartment, as the manual directs.
Does it have a backlight?
The sources opened for this guide do not confirm a backlight for the MM325, so check the product features before you buy if a backlight matters for your work.
Bottom line
The Klein MM325 is a simple manual-ranging meter with a stated CAT III 600 V rating, a 2000-count display, and voltage, DC current, resistance, diode, continuity and battery functions. Choose it for basic electrical and battery checks at or below 600 V, respect the manual’s current and resistance limits, and buy the MM420 instead if you need AC current, capacitance or auto-ranging.
Related guides
For a wider view of Klein meters by function, read Klein Tools Multimeter Lineup: 12 Records Sorted by Function. For Klein clamp options, read Best Digital Clamp Meters: 4 Picks Compared.
Sources
- Klein Tools, “Digital Multimeter, Manual-Ranging, 600V” (MM325) product page, https://www.kleintools.com/catalog/multimeters/digital-multimeter-manual-ranging-600v-0. Opened 2026-10-27.
- Klein Tools, “MM325 Instruction Manual” (English), https://data.kleintools.com/sites/all/product_assets/documents/instructions/klein/MM325%20Instructions_web.pdf. Opened 2026-10-27.
- Klein Tools, “Digital Multimeters Selection Guide” (2026), https://data.kleintools.com/sites/all/product_assets/documents/brochures/klein/MM_SelectionGuide_2026.pdf. Opened 2026-10-27.
