How to test a connector pin with a multimeter comes down to two bench checks on one pin, made with the connector unplugged from every device, its harness and any power source. The first is continuity from that pin to the wire crimped or soldered to it. The second is identifying the pin from the connector manufacturer’s datasheet or pinout, which states the direction it is viewed from. A pin-by-pin check of a whole connector is outside this post, because the sources we opened do not describe it as a bench step.

Electrical safety

Mains circuits can kill, and this post does not cover them. It applies only to one pin of a connector that is unplugged from every device, from its harness and from any power source. It does not describe probing a connector plugged into a powered device or a vehicle, and it does not describe mains connectors or outlets. No step below touches a live panel, an outlet or service wiring.

The University of Vermont safety page says that when body resistance is lowered, for example by standing in water or touching metal, even a minor shock can be deadly. The UNCA safety page describes shock effects that range from a slight tingle to severe burns to cardiac arrest, and says a shock happens once a person completes a path through the body. The OSHA electrical page names electric shock and electrocution among the dangers its standards address.

Confirm that the meter’s CAT rating matches the circuit before any reading, and take the number from the listing or the manufacturer’s manual. The Fluke safety guide says to pick the category that matches the highest one you might meet, and notes that the rating is usually printed near the input jacks. The GAMBICA technical guide says measurement terminals must never be connected to a circuit that exceeds the rated voltage or measurement category. The Fluke 87 manual describes CAT III as covering measurements on equipment in fixed installations. For a plain-language explainer, see our CAT III and 600 V explainer.

Panel and service work is reserved for a licensed electrician. The University of Vermont page says only licensed electricians are authorized to replace plugs or splice cords, and that hard wiring should never be exposed or accessible to people who are not electricians. The Washington State University policy limits work on building circuits and wiring to authorized and qualified personnel. None of these pages says in so many words that panel work requires a licensed electrician, and the section on what we could not verify returns to that point.

Quick answer

Work with the connector unplugged from every device, its harness and any power source, and with the supply off.
Use continuity mode to confirm a complete path from the pin to its wire, and read a beep as that path.
Find the pin number on the manufacturer’s drawing, and match it to the view the drawing states.
Whole-connector pin checks are not covered here.

How we chose

This post covers one pin, on the bench, with the connector unplugged from every device, harness and power source. That scope matches the low-voltage method the sources describe: continuity and resistance readings on circuits that have been de-energized. We kept only steps stated in a manufacturer page, a manufacturer manual or a public safety page that we opened. Search results were used only to find URLs, and each URL was then opened with curl. Where a manufacturer page or manual and a secondary page covered the same point, the manufacturer’s own text was used. Each quoted fragment was checked against the saved text of its page, and where a fragment did not match, the sentence was paraphrased. Continuity mode was chosen for the pin-to-wire check because the Fluke 87 manual describes continuity testing as a way to verify that circuit connections are intact, which is the question a single pin raises.

We opened 22 distinct URLs on 2026-10-22. Fourteen returned readable text. Eight did not: two returned 404, three returned 403, one returned 503, and two gave no response. Two readable pages were left out. One is a retailer tutorial whose continuity steps the Fluke pages already cover, and the other is a university page whose points are already made by the pages used. Forum threads and encyclopedia entries from the search results were not opened or used.

What we could not verify

No resistance figure for a sound pin contact, and no replacement threshold, appears in the sources we opened.
The sources do not give the beep threshold for your own meter. The Fluke 87 table of threshold values applies to that meter only, and this post does not copy it.
Nothing in the sources we opened explains how a probe reaches a contact inside a housing, or how to check a crimp or solder joint at the pin.
The sources give no pin layout for any connector you may hold. The JST datasheet covers its own PH series, and the Hirose article covers one Hirose part, so neither numbering applies to your connector.
The JST figure is a PC board layout. The sources do not say how it maps onto the wire side of a crimped connector.
The sources do not describe a pin-to-neighbor check as a bench step.
The sources do not say outright that panel work requires a licensed electrician. The University of Vermont and Washington State University pages restrict hard wiring and building circuits to electricians and qualified personnel. Applying that limit to panel work is our reading, not a quoted rule.
No CAT rating is given for any connector test. The rating for your meter comes only from its listing or manual.

Preparation

Gather a digital multimeter with a continuity setting, leads in good condition, and the connector’s datasheet or pinout. The Fluke 87 manual says to be sure the meter is in good operating condition. For meter choices, see our multimeter roundup. Make sure the wire you will test is isolated from other components, as the Fluke continuity page advises for the component under test.

The Fluke 87 manual describes continuity testing as a way to verify that circuit connections are intact. The Fluke continuity page says a digital multimeter emits a beep when it detects a complete path (continuity). Those two descriptions cover the same check, so the steps below use continuity mode for the pin-to-wire test.

Steps

Step 1: Isolate the connector

Unplug the connector from the device and from its mate, and switch off the supply. Disconnect the far end of the wire you will test from anything else. OSHA’s general-industry rule says live parts must be de-energized before work on or near them, with an exception where that is infeasible. The Fluke resistance page says the component should be removed from the circuit for the most accurate readings. The Fluke continuity page says to connect the leads with the circuit de-energized.

Step 2: Discharge any capacitor

If the circuit includes a capacitor, discharge it before you take any resistance reading. The Fluke resistance page gives that instruction, and the Fluke 87 manual says to turn off power and discharge all capacitors before in-circuit resistance measurements. The Fluke safety guide also says to assume each component is energized until the discharge steps are complete.

Step 3: Set continuity mode and check the leads

Check the leads before you test the pin. The Fluke 87 manual says to check test lead continuity and to replace damaged leads. To set up a continuity test, the same manual says to set the rotary switch to the ohms position, press the button that toggles the continuity beeper, and connect the meter to the circuit. For most wiring checks it suggests the 400 ohm range. Insert the black lead into the COM jack and the red lead into the VΩ jack, as the Fluke resistance page describes, then touch the two leads together. That page says that, ideally, the display shows 0 Ω when the leads are shorted together. For very low readings, it suggests relative (REL) mode, which automatically removes the resistance of the leads, typically 0.2 Ω to 0.5 Ω. For a separate continuity tester, see our continuity tester how-to.

Step 4: Identify the pin on the manufacturer’s drawing

Find the pin on the connector’s own drawing, not on a generic diagram. The JST datasheet for its PH series says the PC board layout figure is viewed from the connector mounting surface. The Hirose support article says that, for one connector, pin 1 sits at the right edge when the connector is viewed from the mating side with the board side facing down. Both pages state a view for their numbering or layout, so a pin number should be read together with that view. Match your pin to the view that the drawing states.

Step 5: Test continuity from the pin to its wire

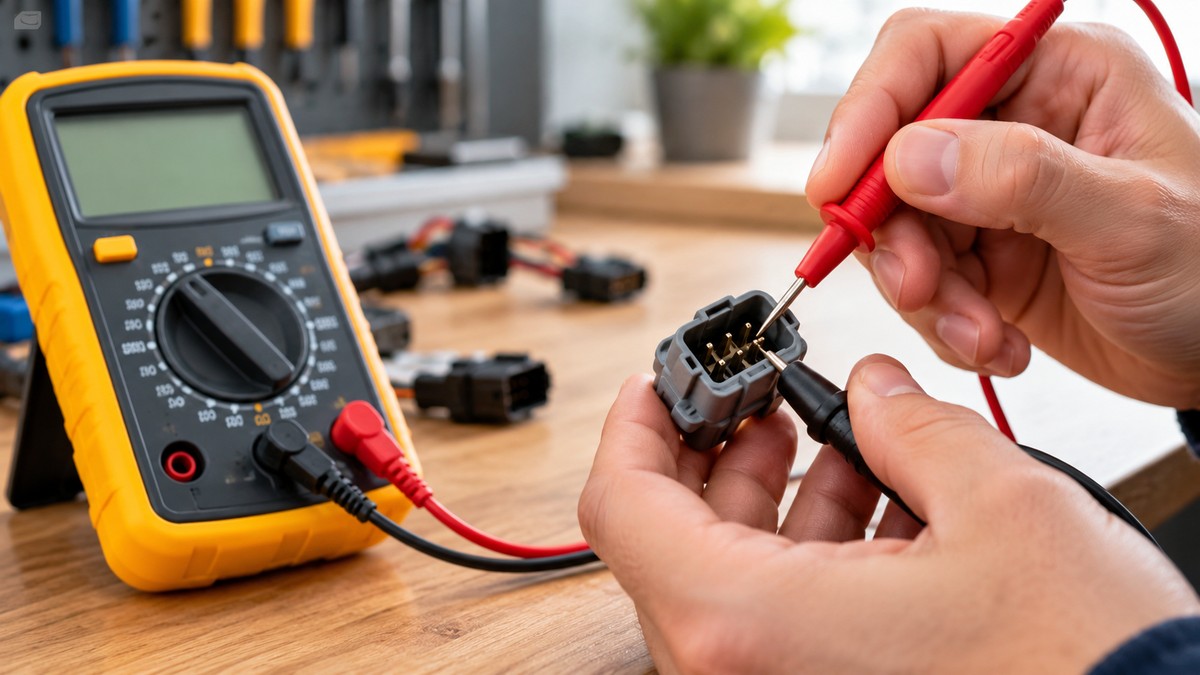

With the meter in continuity mode and the connector isolated, touch one lead to the pin and the other to the far end of the same wire. The Fluke continuity page says to keep the component isolated from other components in the circuit. The Fluke resistance page says to make sure the contact between the test leads and the circuit is good. A beep means the pin reaches that wire end.

Step 6: Remove the leads

Last, take the leads off in the reverse of the order they went on: red first, then black. The Fluke resistance page gives that sequence.

Reading the results

A beep means the meter has found a complete path between the two points you touched. No beep means the path is open, as the Fluke continuity page says for an open circuit. The Fluke 87 manual says its continuity mode can detect shorts or opens that last as little as 1 millisecond, and that the beeper tone is stretched to last at least 1/4 second so it can be heard. It also says that resistances below the values in its Table 3 produce a continuous tone. This post does not copy that table.

The Fluke continuity page says the beep depends on the range setting. On a 400.0 Ω range, it says a meter typically beeps at 40 Ω or less. That is a beep threshold on a meter, not a pass or fail limit for a connector pin. The Fluke resistance page also says a resistance reading is the total resistance through all possible paths between the probes, so a beep can come from a path other than the pin’s own wire. Open, unattached test leads read very high, and the same page says the MΩ symbol may appear in the display for that reason.

The Fluke resistance page says that contacts in switches and relay contacts start out with very low resistance and rise over time from wear and dirt. That page does not discuss connector pins, so the point is background only.

Common mistakes

Leaving the wire tied to other parts. The Fluke resistance page warns that other components in parallel can affect a reading, and tells readers to check the circuit schematic for parallel paths.
Testing dirty contacts. The same page names dirt, solder flux and oil as things that can throw off a resistance reading.
Holding the metal ends of the leads. The Fluke resistance page says body contact with the metal ends of the test leads adds a parallel path, which lowers the reading.
Reading the wrong pin. A pin number is tied to a view. Read the view from the drawing before you match the pin, as the JST and Hirose pages illustrate.

Frequently asked questions

Can I test a pin while the connector is plugged in?

No. This post covers only a connector that is unplugged from every device, its harness and any power source, and a live connector falls outside that scope.

Does a beep tell me which pin I am testing?

No. A beep shows that the meter has found a complete path between the two points you touched. The pin’s number comes from the manufacturer’s drawing and the view that drawing states.

Where is pin 1 on a connector?

On the manufacturer’s drawing for your part. The sources we opened give no universal rule. The Hirose support article states the view that puts pin 1 at the right edge for one connector, and the JST datasheet states the view used for its PC board layout figure.

What resistance reading means a pin is good?

The sources we opened do not say. The Fluke resistance page says leads touched together ideally read 0 Ω, and that REL can subtract lead resistance, typically 0.2 Ω to 0.5 Ω. Neither gives a limit for a contact.

Should I check the pin against its neighbors?

That is a whole-connector check, which this post leaves out.

Which CAT rating does this test need?

Read the rating from your meter’s listing or manual. The Fluke safety guide’s advice is to pick the highest category you might work in. This post gives no rating, because the sources we opened do not state one for this test.

Bottom line

Unplug the connector, switch the supply off, match the pin to the view its drawing states, and then confirm continuity from that pin to its wire.
