Klein Tools VDV500-920 Wire Tracer Tone Generator and Probe Kit Continuity Review
The first time you need to find one wire

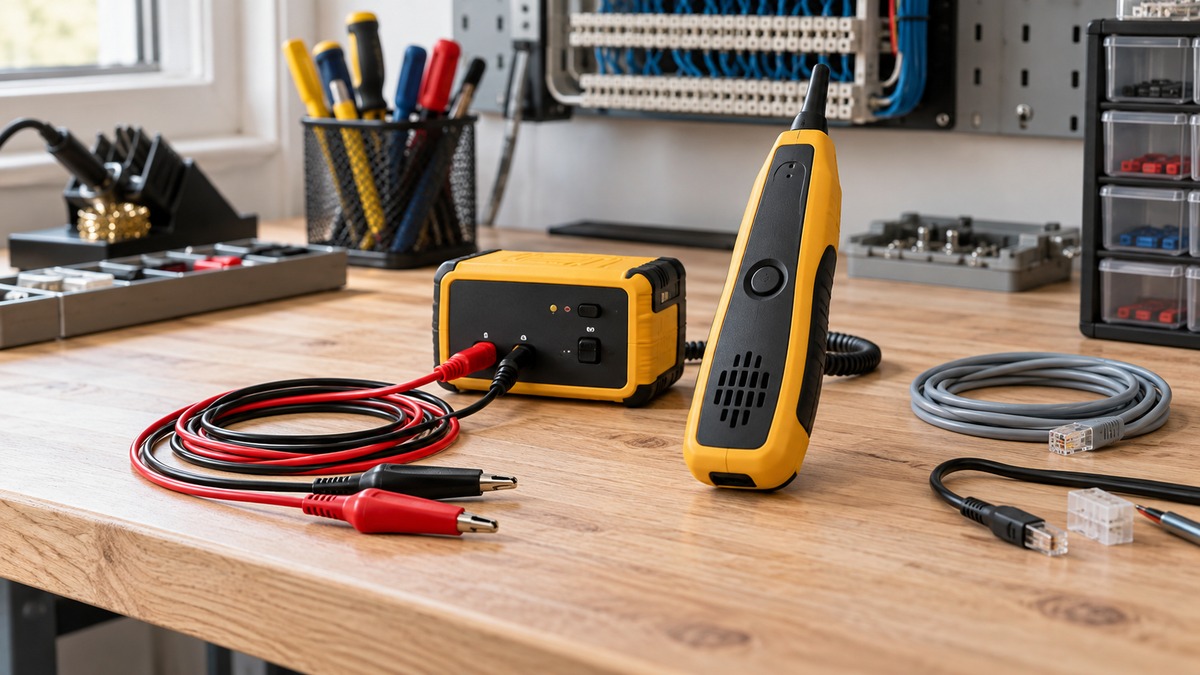

A tracer kit earns its place when you have a bundle of cables, no labels, and a job that cannot wait for a guess. The Klein VDV500-920 pairs a tone generator with a probe, so you can send a signal down one end of a cable and follow it at the other. It also includes continuity and polarity checks, and the listing names data, phone, coax, video, speaker and audio cables among the cable types it covers.
See the Klein VDV500-920 kit on Amazon
What the kit does, function by function
- Digital tracing on an active network. The listing describes tracing and locating cables on an active network to identify their paths and destinations.
- Analog tracing. An analog mode isolates individual wire pairs, which helps when several pairs run side by side in one bundle.
- Continuity and polarity LEDs. Results appear on clearly labeled LEDs, so you can read a pass or fail without a second instrument.
- Angled bed-of-nails clips. The clips are described as attaching to unstripped wires, so you can trace a wire without cutting the jacket.
- Wire mapping. The mapping function checks pin-to-pin connections and shield detection, which matters for data and video runs.
- 60 Hz filter. The kit includes a 60 Hz filter to help ensure accurate tracing.
- RJ45, RJ11 and RJ12 testing. The kit tests common telephone and network connectors.
Cable types it covers
The product title lists Ethernet, internet, telephone, speaker, coax, video and data cables, and the RJ45, RJ11 and RJ12 connector types. For a network installer, that means one kit can cover a patch panel, a telephone run and a video line. For a homeowner, it covers a bundle of speaker wire or coax behind a media cabinet.
Who this kit suits
- Electricians and low-voltage installers who run data, telephone and video cable through finished walls.
- IT technicians who need to map patch panel connections and confirm which port goes where.
- Homeowners with a tangle of unlabeled cables behind a TV, router or stereo.
- Anyone who wants a single kit for tracing, continuity and polarity, rather than separate tools for each job.
Who should skip it
- Anyone who needs a multimeter for voltage, current or resistance work. The listing classifies the product as a multimeter, but its listed functions are tracing and continuity.
- Anyone who needs a live voltage check on a circuit. No voltage measurement is listed.
- Anyone who needs a documented warranty before buying.
- Anyone who needs a compact tool for a shirt pocket. The listed dimensions are 13.25 by 6.75 by 3 inches, which suggests a kit that needs a bag or case.
Digital or analog mode: choosing the right trace
The kit has two tracing modes, and the listing describes each for a different situation. Digital mode traces and locates cables on an active network, so you can identify where a live run starts and ends. Analog mode isolates individual wire pairs, and the listing ties it to voice, data, video and audio cables. Choose digital when the question is which path a network cable takes, and analog when several pairs share one bundle and you need one pair out of it. If you are not sure which mode fits, try both on a cable you already know, so you understand the difference before a live job.
A step-by-step tracing flow
- Mark the cable at the end you can reach, so you can match it again at the far end.
- Attach the tone generator to the cable with its clips. The listing describes angled bed-of-nails clips that attach to wires, including unstripped wires.
- Move to the other end with the probe, and switch between digital and analog mode depending on whether you are following a network run or a single pair.
- Confirm the match with the continuity and polarity LEDs, which the listing describes as clearly labeled and easy to read.
- For a data run or a patch panel, check the wire mapping function for pin-to-pin connections and shield detection.
- The listing includes a 60 Hz filter for accurate tracing. It does not say whether the filter can be switched off, so check the manual before you rely on a setting.
Continuity and polarity: what the LEDs answer
Continuity asks whether a conductor forms a complete path from one end to the other. A break in the wire, a loose connection or a mismatched pair will show up as a failed continuity result. Polarity asks whether the conductors are wired in the expected order and orientation. The listing describes both results on LEDs that are clearly labeled, so a single glance tells you which test passed.
The kit’s continuity function is one of several features in the set. Its LEDs report on the test you ran, so a clean continuity result does not confirm the cable’s full wiring. Use wire mapping for that, and use the tracing modes to confirm the path.
Kit size, weight, and storage
The item measures 13.25 by 6.75 by 3 inches and weighs 1.4 pounds. Those figures make the kit larger than a pocket tool, so plan a bag or case that fits the full set before you carry it to a job. The included components field names a digital tone and probe set, and it does not list each accessory separately, so check the box contents on arrival. The listing gives a unit count of one, so a crew that needs a kit for each person will need separate purchases.
Category comparison by group
Two category examples show other tools in this space. The LJPXHHU digital multimeter and the ATOBLIN power circuit probe are different instruments, and the table compares them by group. Their values belong to those products and do not describe the Klein kit.
| Group | Klein VDV500-920 (this review) | LJPXHHU multimeter (category example) | ATOBLIN power circuit probe (category example) |
| — | — | — | — |
| Main job | Tracing cables, continuity and polarity | AC and DC voltage, DC current, resistance, continuity, diode and battery tests | Diagnosing 5 to 60 V DC automotive circuits |
| Voltage | No voltage measurement listed | AC and DC voltage | 5 to 60 V DC system range |
| Continuity | Continuity and polarity LEDs | Audible continuity sensor | Continuity test listed |
| Tracing | Digital and analog modes, wire mapping | Not listed | Not listed |
| Display | — | 2.7-inch backlit LCD | LCD digital display |
| Power | — | Battery and test leads included | Battery powered |
| Warranty | Refers to an attached warranty document | 2-year guarantee | — |
| Weight | 1.4 pounds | 166 g | 0.4 kg |
The table shows where the Klein kit sits. It is a tracing and continuity kit. If the job is to measure voltage or current, one of the other two tools is the better fit.
Use scenarios
- Finding one cable in a rack. Use the tone generator on one end and the probe at the rack to pick out the right line.
- Checking a new run before closing a wall. Continuity and polarity LEDs confirm each conductor is complete and wired in the right order.
- Tracing a telephone line behind a wall. Analog mode helps pick a pair out of a bundle.
- Mapping a patch panel. Wire mapping checks pin-to-pin connections and shield detection.
Buying criteria
Judge the kit by the jobs you do most often:
- Do you trace cables through unlabeled bundles? If yes, the tracing modes matter most.
- Do you need continuity and polarity checks on the same tool? The LED results cover both.
- Do you work with data, telephone or video cable? The RJ connector tests and wire mapping cover those types.
- Do you need a voltage or current reading? If yes, this kit is not the right tool.
5.
Checks to run before you order
- Confirm the cable types you work with appear in the listed set: Ethernet, telephone, speaker, coax, video, data, and RJ45, RJ11 or RJ12 connectors.
- Confirm you have room for a kit that is listed at 13.25 by 6.75 by 3 inches.
- Check the battery type on the box or in the manual.
Wire mapping and shield detection on a patch panel
Wire mapping is the function the listing ties to pin-to-pin verification and shield detection. For a patch panel, that means checking that each port connects to the expected far-end pin, and confirming that a shielded cable’s shield is detected as shielded. The listing names RJ45, RJ11 and RJ12 testing as well, so the same kit covers the common telephone and network connectors you are likely to meet on the same job.
The listing does not describe how wire mapping results are shown, so read the manual for the full meaning of each indication before you rely on one inside a closed-up wall. If a patch panel has more ports than you can check in one pass, map one run at a time and keep a written list of port-to-pin results, so a later session can pick up where you stopped.
Limitations and open points
- Measurement type. The listed functions are used in this review, not the multimeter label.
- Warranty terms. The field points to an attached document.
- Accuracy figures. No accuracy figure is given for tracing or continuity.
- Certifications. The only certification listed is CE.
How it compares with other tools in the category
Two category examples show what other tools in this space do. The LJPXHHU digital multimeter lists AC and DC voltage, DC current, resistance, continuity, diode and battery tests, with a backlit display and a 2-year guarantee. The ATOBLIN power circuit probe tests 5 to 60 V DC automotive systems, including component activation and continuity. Both are different tools with different jobs. They do not describe the Klein kit. Choose the Klein kit when the job is tracing and mapping cables. Choose a multimeter or power probe when the job is measuring power.
Questions buyers ask
Does it test for voltage? No voltage measurement is listed for this kit. Use a separate voltage tool for power checks.
Does it trace unstripped wire? The angled bed-of-nails clips are described as attaching to unstripped wires for tracing.
The cable types named are copper and coaxial types.
What is the model number? The model field reads A-VDV500-920, and the part number field reads VDV500-920.
Is the kit CE-marked? The specification met field lists CE.
Does the kit run on batteries? Yes. The power source field reads battery powered.
Is there a warranty? The warranty description refers to an attached document.
Final verdict
The Klein VDV500-920 is a focused cable-tracing and continuity kit. It covers digital and analog tracing, polarity and continuity LEDs, wire mapping and the common RJ connector types, which makes it a good match for installers and IT technicians. It is not a multimeter, and its warranty and battery details should be checked before you order.
