Best Internal Resistance Tester
As an Amazon Associate we earn from qualifying purchases. Details

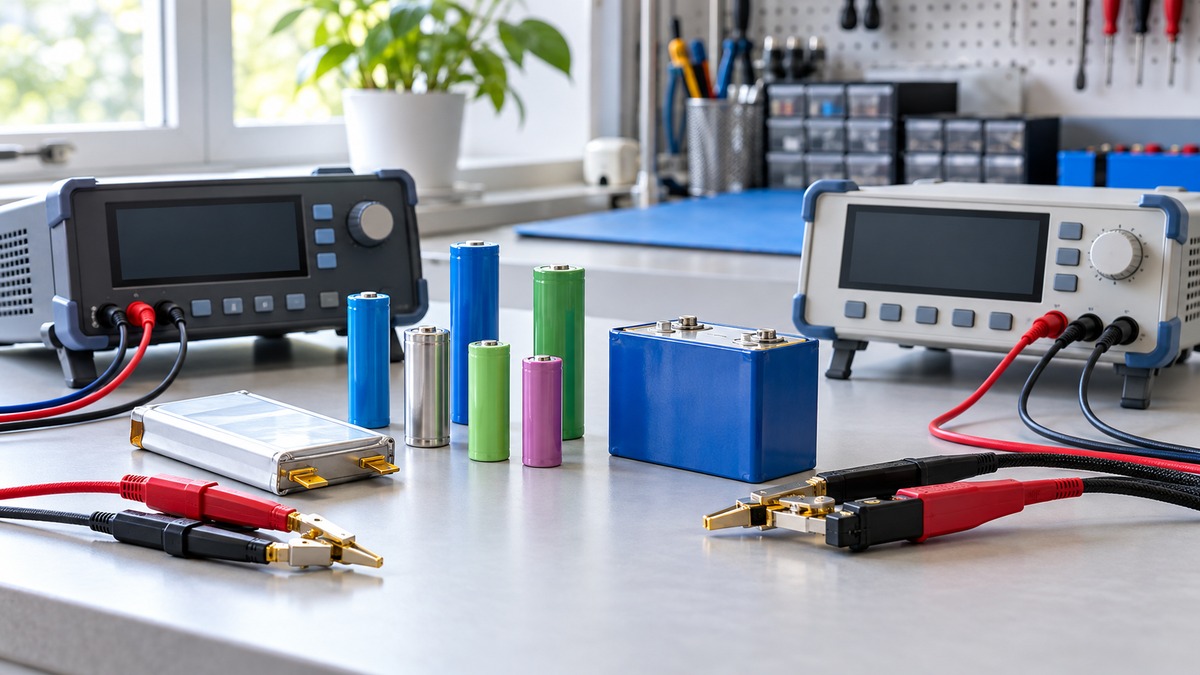

An internal resistance tester measures how much resistance a battery or cell presents to current, which is a common check on battery condition. Three products in our research set name battery internal resistance in their titles or bullets, and each one is listed with its own range and voltage limit. We show those figures as the listings state them. The extra products were checked on 2026-10-18, and the figures below come from those listings only. The three are different kinds of instrument, so read each one’s type before comparing ranges.
Quick answer
For the widest resistance range in this set, the SUNKKO T-685 (B0GHZ5G5SY) lists a floor of 1 microohm, against 0.1 milliohm for the two ZOYI-labeled products. For a handheld instrument that also works as a multimeter, the ZOYI ZT-XR1 (B0FKZG3MFJ) is the only one whose listing says it has a full digital multimeter function. The ZOYI and ZOTEK 2-in-1 LCR unit (B0H7184L2D) is a component meter first, with battery testing as a second mode.
The three testers at a glance
| Tester | ASIN | Instrument type (as listed) | Internal resistance range (as listed) | Voltage range (as listed) |
|---|---|---|---|---|
| ZOYI ZT-DQ02 2-in-1 LCR meter and battery tester | B0H7184L2D | LCR meter with battery mode | 0.1 milliohm to 200 ohms | DC within plus or minus 100 V |
| SUNKKO T-685 lithium battery internal resistance tester | B0GHZ5G5SY | Battery pack analyzer with resistance mode | 1 microohm to 200 ohms | 1 mV to plus or minus 100 V DC |
| ZOYI ZT-XR1 battery internal resistance tester | B0FKZG3MFJ | 2-in-1 with a 25,000-count multimeter | 0.1 milliohm to 200 ohms (adjustable) | 100 V maximum input |
1. ZOYI ZT-DQ02 2-in-1 Digital LCR Meter and Battery Internal Resistance Tester
The listing describes a 2-in-1 unit: an LCR meter for components and a battery input for internal resistance and voltage. Its component modes measure inductance, capacitance, resistance and impedance, with five test frequencies from 100 Hz to 100 kHz and three test levels of 0.1 V, 0.3 V and 0.6 V. The battery mode is described as a 4-wire measurement from 0.1 milliohm to 200 ohms, plus DC voltage within plus or minus 100 V. The bullets name lead-acid, lithium-ion, LiFePO4 and NiMH cells as suitable.
The listing also covers a PC link over USB-C with SCPI support, and a component sorting function that gives a PASS or FAIL result against a nominal value and tolerance. The specification block gives a weight of 13.12 ounces and a maximum operating voltage of 100 volts DC. This product is the only one of the three whose bullets describe component work, so it suits a bench that does both jobs.
ZOYI ZT-DQ02 LCR and battery tester on Amazon
2. SUNKKO T-685 High Precision Lithium Battery Internal Resistance Tester
The listing gives the widest internal resistance range in the set, from 1 microohm to 200 ohms, and a voltage range of 1 mV to plus or minus 100 V DC. It states plus or minus 0.5 percent precision for both resistance and voltage. The bullets say it measures AC and DC resistance with automatic range switching, offers six resistance gears and three voltage gears, and runs at about five measurements per second.
The probe set is a 4-wire LCR Kelvin clip set. The bullets list lithium, nickel-hydrogen, nickel-cadmium, alkaline, lithium iron phosphate, lead-acid and 18650 cells, and also supercapacitor ESR at low current. The unit is powered from AC 110 V or AC 220 V and draws a stated 50 to 100 mA. Included parts are a power cord, a balance cable, a charging cable, a line sequence test board and instructions. Its specification block lists a weight of 2.4 pounds, and the bullets give the size as 7.48 x 7.09 x 3.15 inches.
SUNKKO T-685 battery resistance tester on Amazon
3. ZOYI ZT-XR1 Battery Internal Resistance Tester
The XR1 listing describes a battery internal resistance tester that also works as a 25,000-count digital multimeter. The multimeter functions include AC and DC voltage, resistance, capacitance, frequency, temperature, diode test and continuity check. Its resistance range is given as 0.1 milliohm to 200 ohms, adjustable by the user, and the voltage input is rated at 100 V maximum. The listing says it uses 4-wire Kelvin clips and supports manual voltage and resistance range adjustment.
The display is described as a TFT color screen with brightness adjustable from 10 to 100 percent. The auto-shutdown timer is set from 5 to 120 minutes, and the buzzer volume is adjustable from 0 to 100 percent. The unit charges through a Type-C port. The included parts are the tester, test leads, a battery, test cables and a cloth bag.
ZOYI ZT-XR1 battery tester on Amazon
How we chose these three
We kept products whose title or bullets name battery internal resistance as a function, and we used only the three extra products with a status of ok. The research set also contained an electronic load tester, which the listing describes as a battery capacity and constant current load, not an internal resistance meter. It is outside this comparison. We did not test any of these instruments. Every figure below comes from the listing text.
- Function: all three name battery internal resistance in the title or bullets.
- Type: one is a component LCR meter with a battery mode, one is a battery pack analyzer, and one is a multimeter with a resistance tester.
- Range: the two ZOYI products state the same 0.1 milliohm to 200 ohm range, and the SUNKKO states a lower floor of 1 microohm.
Worked example: which range covers a 50 microohm reading
Take a reading of 50 microohms, which is 0.05 milliohms, as an illustration only. The SUNKKO range runs from 1 microohm to 200 ohms, so 50 microohms falls inside it. The two ZOYI listings state a floor of 0.1 milliohm, which is 100 microohms. A 50 microohm value is therefore below their stated floor and would not be covered by their listed range.
Now take a reading of 25 milliohms, which is 0.025 ohms. That value sits inside all three listed ranges, since each one runs to 200 ohms at the top and reaches down to 0.1 milliohm or lower.
Where the listings disagree
- Brand and part: the ZT-DQ02 title says ZOYI, but its brand field says ZOTEK and its part number is given as ZT-DQDQ, not ZT-DQ02.
- Voltage limit: the ZT-DQ02 and SUNKKO list plus or minus 100 V DC, while the XR1 lists 100 V as its maximum input, so the two are not written the same way.
- Measurement type: the SUNKKO specification block lists its measurement type as charge equalization, which does not match the resistance function in its bullets.
What the listings do not say
The ZT-XR1 and ZT-DQ02 bullets give no accuracy figure for their resistance function. The SUNKKO gives plus or minus 0.5 percent precision, but its listing does not say which range that figure applies to. None of the listings says what a normal internal resistance value is for a given cell, so the instrument will give a number and the comparison to a reference value is left to you.
Frequently asked questions
Which of these testers covers the lowest internal resistance?
The SUNKKO T-685 lists a floor of 1 microohm. The ZOYI ZT-DQ02 and ZT-XR1 list a floor of 0.1 milliohm.
Which battery chemistries does each listing name?
The ZT-DQ02 names lead-acid, lithium-ion, LiFePO4 and NiMH. The SUNKKO names lithium, nickel-hydrogen, nickel-cadmium, alkaline, LiFePO4, lead-acid, 18650 cells and supercapacitor ESR at low current. The ZT-XR1 title names AAA and AA cells and car batteries.
Can these instruments measure battery voltage as well?
Yes. All three listings include a voltage function. The SUNKKO and ZT-DQ02 state a range of plus or minus 100 V DC, and the ZT-XR1 states a 100 V maximum input.
How fast does the SUNKKO take a reading?
The SUNKKO bullets say it runs at about five measurements per second. The other two listings do not give a measurement rate.
Do these connect to a computer?
The ZT-DQ02 lists a USB-C link with SCPI support for PC control. The SUNKKO lists a USB port for computer connectivity. The ZT-XR1 lists a Type-C charging port and does not describe a data link.
Conclusion
These three listings cover three different instrument types, so the right one depends on the job. The SUNKKO has the lowest listed floor, the ZT-DQ02 is the component meter with a battery mode, and the ZT-XR1 is the multimeter with a resistance function. Check the range, the voltage limit and the chemistries in the listing you choose, and confirm the figures on the live listing before you buy.
